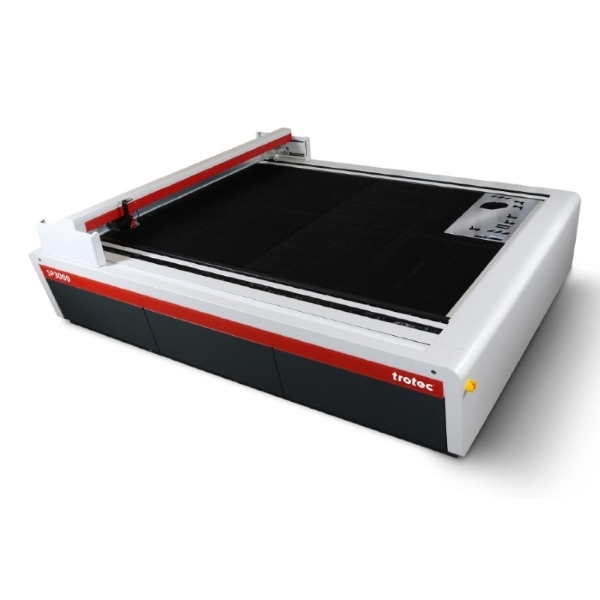

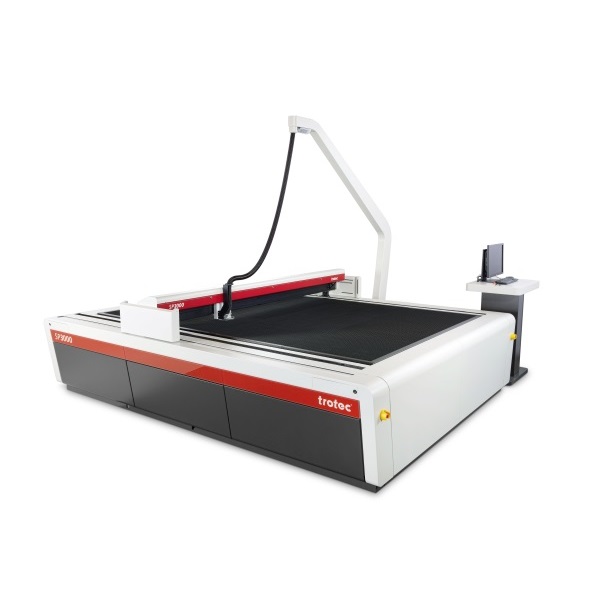

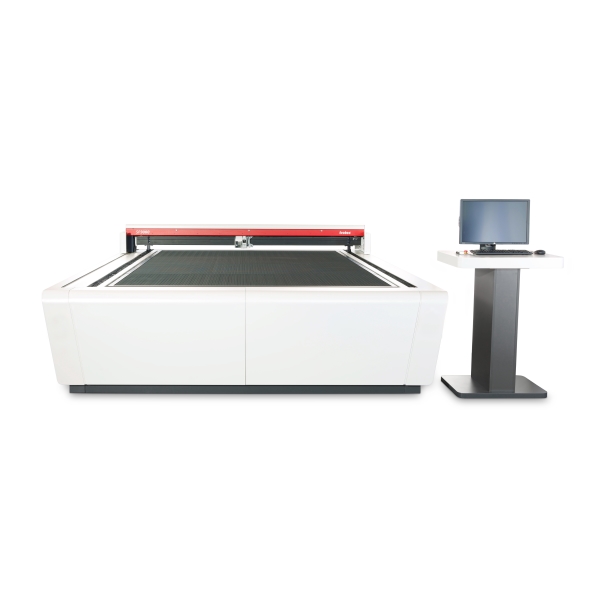

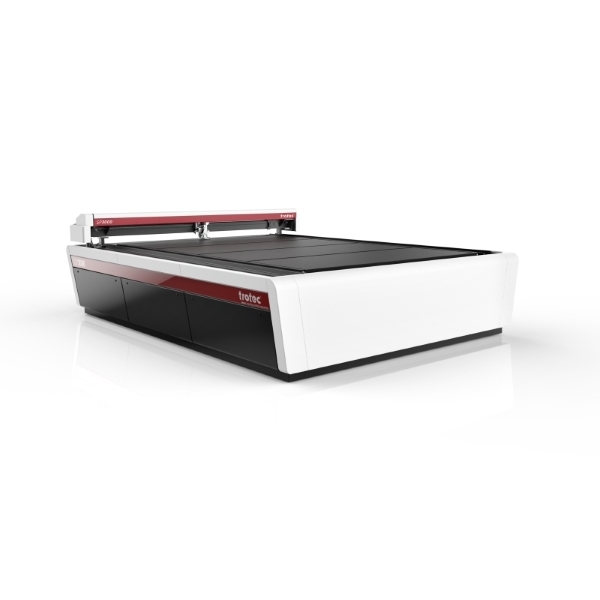

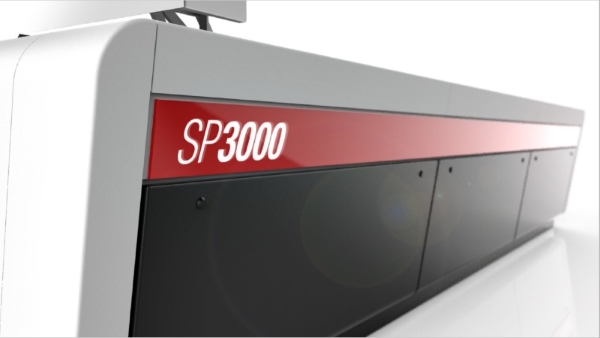

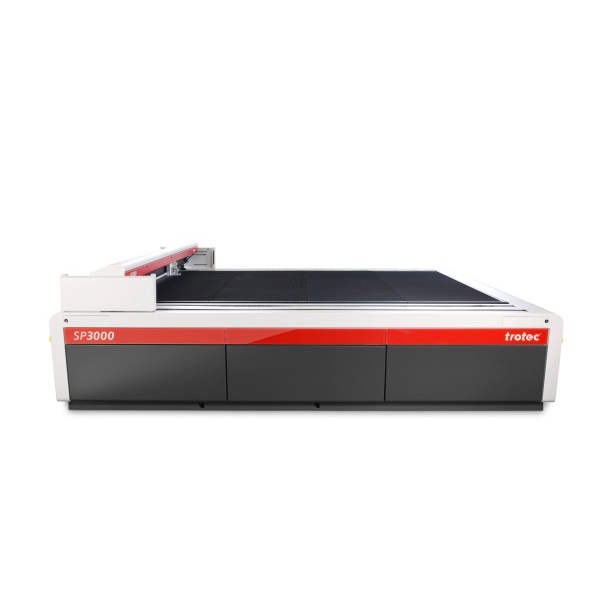

Trotec SP3000 – CO2 large format cutting laser

Technical parameters
  • Class 2 CO2 laser with a power of 60 – 400W
  • max. engraving area: 2210 x 3210 mm
  • max. size of inserted material 2500 x ∞ mm
  • max. engraving speed: 100 cm/s
  • max. object height: 50 mm (with 2.5 “lens)



Additional parameters
  • brushless maintenance-free servomotors
  • external dimensions: 3076 x 3914 x 1230 mm
  • weight: 1600 kg
  • max. load capacity table: 200 kg
  • control: PC with Win 10 32 and 64 bit
  • gas unit – choice of two assistance gases
  • air blown optics
  • multifunctional table concept
  • Class 4 laser with completely closed laser beam path (can be operated in Class 2 in standard mode)
  • suction under the work table and at the laser head

Leading Large Format Laser Cutting

The brand new laser cutter has a working area of 2,2 x 3,2 meters and is perfectly suited for cutting large format materials like acrylics, textiles, cardboard and more. Thanks to an innovative drive technology and its rigid design, the SP3000 is ready for 24/7 production. Fast, productive, reliable.

Outstanding Working Area

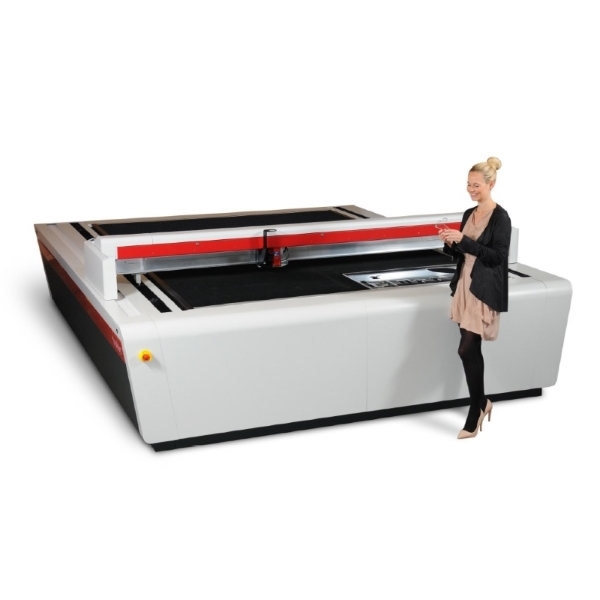

The working area of 2.210 x 3.210 mm of the SP3000 is designed for large format materials. It is easy to access from all four sides. The loading area is 2.500 wide, open at the front and the rear. The open design allows unloading and loading from all four sides even during processing. This makes your daily work with the SP3000 even more productive.

High Speed Cutting at Highest Quality

Even at highest speeds, up to 1 m/ sec and 1g acceleration, the SP3000 delivers cutting quality beyond compare. The innovative drive technology, the precise mechanical guidance system and the superior mechanical concept state the engineering excellence made in Austria.

Air-flushed Optics for Excellent Cutting Edges

All optics are air-fl ushed with clean compressed air during laser processing. The optics are kept free from dust that is produced during cutting. This is providing a maintenance-free operation and a long life of the high-quality components.

Fully Closed Beam Path for 24/7 Operation

The laser beam is protected over its complete path. Safe operation is guaranteed. The laser class 4 system can be operated as safe as a laser class 2 system in normal operation. No additional safety measures are necessary.

Standard equipment

Universal cutting table for thin plexiglass cutting up to 8 mm thickness without reflection. As with the black aluminum cutting…

Learn more
Dust-free optics at all times All optics are air-flushed. Compressed air is supplied to the corresponding lens or mirror. Dust…

Learn more
The resonator body where the laser radiation is generated is made of 100% ceramic. CeramiCore® stands for reliability, high engraving quality and longevity.

Learn more
Ergonomic and practical control panel supports work with SP lasers The ergonomic and practical control panel supports work with SP2000…

Learn more
Access to the laser work surface from all 4 sides

Learn more
For perfect cutting results: Gas-Kit Using the Gas-Kit, up to 2 process gases can optionally be connected (e. g. compressed air,…

Learn more
Ensures higher productivity and lower running costs thanks to minimum maintenance and optimal protection against dust.

Learn more
Innovative laser software that offers maximum operator comfort for preparing your laser jobs. Laser engraving and laser cutting will be as easy as child's play.

Learn more
The laser pointer indicates exactly by a red dot where the beam of the laser machine will hit the material.

Learn more
More tables – more possibilities For the SP500 Trotec has developed a unique, multifunctional table concept. Depending on the application…

Learn more
The water cooler prevents the laser performance from fluctuating in difficult climatic conditions.

Learn more

Optional accessories

Universal cutting table for thin plexiglass cutting up to 8 mm thickness without reflection. As with the black aluminum cutting…

Learn more
This robust universal cutting table features extremely stable combs and a long service life. This is particularly suitable for cutting…

Learn more
The extraction device Trotec Atmos Pure 600 is equipped with two turbines and is intended for Trotec Speedy 360, Speedy…

Learn more
A Honeycomb cutting table can optionally be used when dividing materials. The use of a cutting table reduces back reflections from the work table, which can cause damage to the lower part of the material being cut.

Learn more
Get the perfect cutting result in a few easy steps JobControl® Cut is a fully integrated editor for processing and…

Learn more
Perfect cutting of printed materials assisted by a camera system and optical registration mark detection.

Learn more
Find the right lens for achieving optimal results during laser engraving or laser cutting with Trotec laser machines.

Learn more
The cutting table with aluminum slats is mainly used for cutting thicker materials (from 8mm thick) and for parts wider…

Learn more
Non-stop laser cutting with Tandem Assist The tandem arrangement provides the operator with efficient and flawless support at work. With…

Learn more
Efficient extraction An exhaust that is directly attached to the laser head removes dust and gases generated during the laser…

Learn more
​Sonar Technology provides a high level of accuracy when focusing on the material being laser processed, guaranteeing a higher quality.

Learn more
The Trotec Vent series has been designed as a simple extraction system for specific configurations of laser machines. They guarantee…

Learn more
