Download datasheet (PDF)Main parameters:
- electric or SW controlled Z axis
- fixed table
- manually or automatically raised front door
- lockable side door with interlock

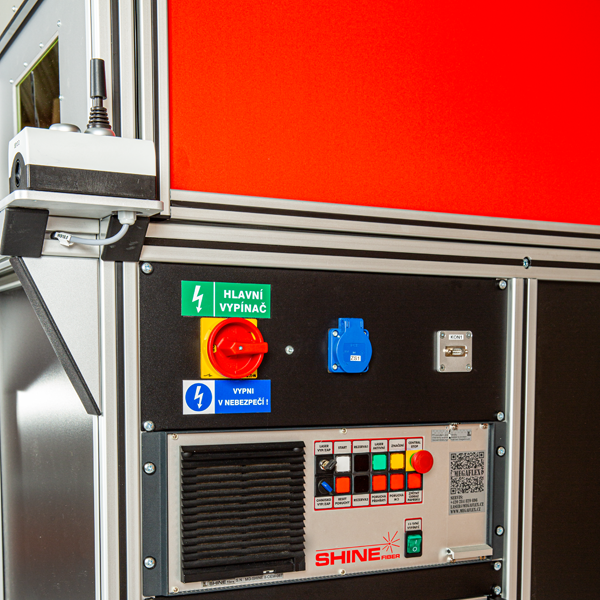

- Siemens control PLC
- optionally retractable or automatic rotary table - carousel
- optional automatic X axis
- optional XY cross table
- optionally rotary devices, feeders, reading devices, etc.
- adjustments according to customer requirements
Workstation with a height of 1891 mm, floor plan 996 x 750 mm and an interior space of 630 x 772 mm. Standard with fixed table, electric Z-axis, manually raised front door and lockable side door. Design for comfortable work of seated or standing operators. With optional accessories, the station can be adapted to the needs of marking. These include a pull-out table or carousel for fast and accurate insertion of marked objects, an automatic SW-controlled Z axis and an automatically raised front window. The basic work surface can be extended by installing an X-axis, or use a cross XY table. Cylindrical objects can be marked around the perimeter using a rotary unit with a chuck. Connection for a polluted air extractor, lighting of a protected area.

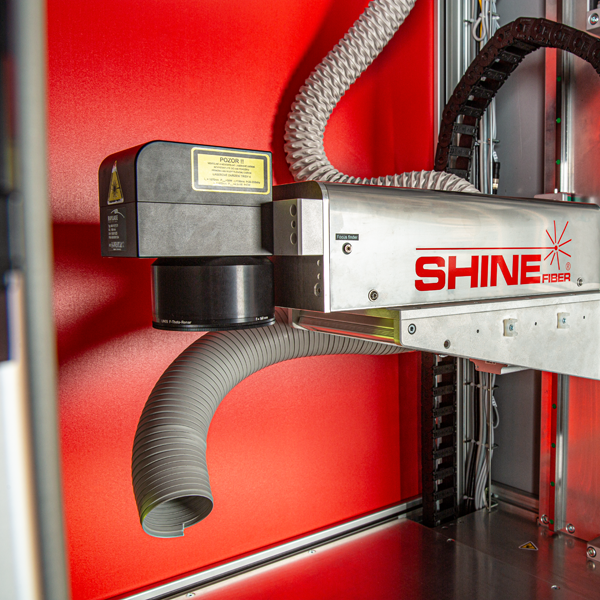

Workstations are standalone units equipped with laser for marking or engraving of objects from metal, plastic and other materials. According to the needs of our customers are equipped with lasers SHINE Fiber or SHINE CO2. The systems are operated with comfortable SCAPS software, allows you to work in Windows 10 (32 + 64 bit).
Main advantages:
- building of systems to bespoke
- flexibility of workstations
- marking of cylindrical surfaces
- high productivity
- simple comfortable operation
- user-friendly software
- wide range of optional equipment
Basic set-up
It is a very robust computer suitable for industrial environments.
Properties:
Long life
Very fast data access is provided by SSDs
Data protection thanks to RAID technology Find more
Ovládací software i pro ty nejnáročnější průmyslové aplikace.

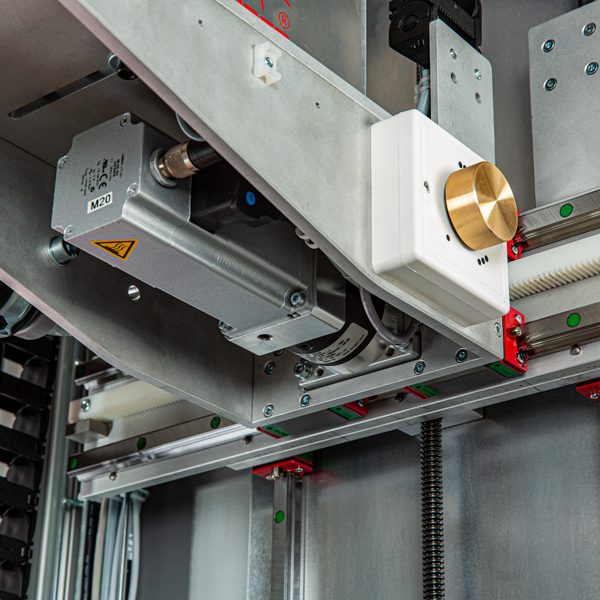

With the motorized z-axis you can effortlessly adjust the working distance to the workpiece. You will thus save time, and the laser will be focused accurately. Find more
Optional accessories
The Atmos Nano exhaust system is the ultra compact choice for fiber laser marking applications. It has a small footprint and fits neatly beneath a workstation. Find more
The modular design of the Servant station, which is equipped with a manual Z-axis drive as standard, can also be equipped with a motorized Z-axis.
Control via touch LCD panel - allows you to quickly move the Z axis to the desired position using the buttons.
Laser software control - thanks to Scaps software, you can have several Z-axis passes stored in each job Find more
During laser marking (especially marking in plastics, rubber, ...) often arise fumes which have to be sucked and filtered. The two main reasons are as follows:
Protecting of focusing lens: Dirt adhering to the lens can dramatically reduce lifetime of the lens.
Hygiene standards: When marking some materials (especially plastics) can rise substances dangerous to human health.
… Find more
Special protective glass that allows the operator to look into the cab and at the same time prevents the passage of dangerous radiation out of the cab into the operator's area.
Allows the operator to view the marking process
Protects the operator's eyesight
Find more
The LED backlight allows you to better position the marked object in the cabin space under the laser head.
The lighting is switched on and off via the touch LCD panel. Find more
Find more
You can also be a Servant station, which is equipped with a fixed table as standard, with a rotary table, where the control of the rotary table is realized via a touch LCD panel.
Makes work easier for the operator
Accelerates work
Automatic synchronization
Automatic start of marking
Find more
Jednotka je určena pro značení a gravírování válcových předmětů. Find more
Save time when setting the laser distance with the software-controlled z-axis. With the electric height adjustment, you adjust your marking laser to different workpiece heights. Laser focusing will thus be successful for any application.
Find more
Megaflex SCAPS control software as standard 2D enables deep engraving and creation eg. the punches using 2D SW-fold repetition of the engraving.
3D software module allows you to work with 3D objects - ie. Import 3D object, which can then be "cut" on the layers, which are then marking and create reliefs.
• Import 3D data format * .stl; * .CLI
• Integrated generator of layers from 3D … Find more
