Download datasheet (PDF)Main parameters:
- Class 2 CO2 laser tube 60W air cooled
- max. engraving area: 1030 x 630 mm
- max. engraving speed: 200 cm/s
- max. speed for cutting: 70 cm/s
- max. object height: 200 mm
- external dimensions: 1550 x 1080 x 1080 mm
- max. load capacity table: 20 kg
- control: PC with Win 10 32 and 64 bit
- control software JobControl

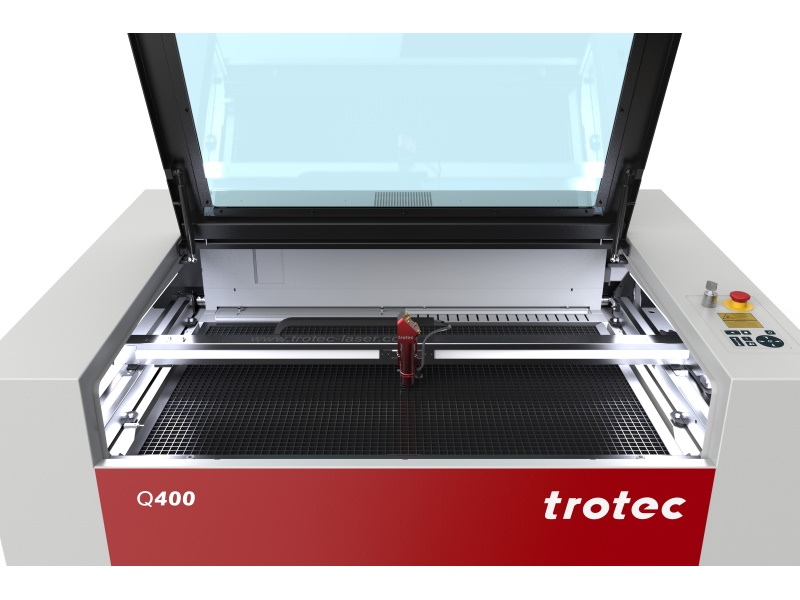

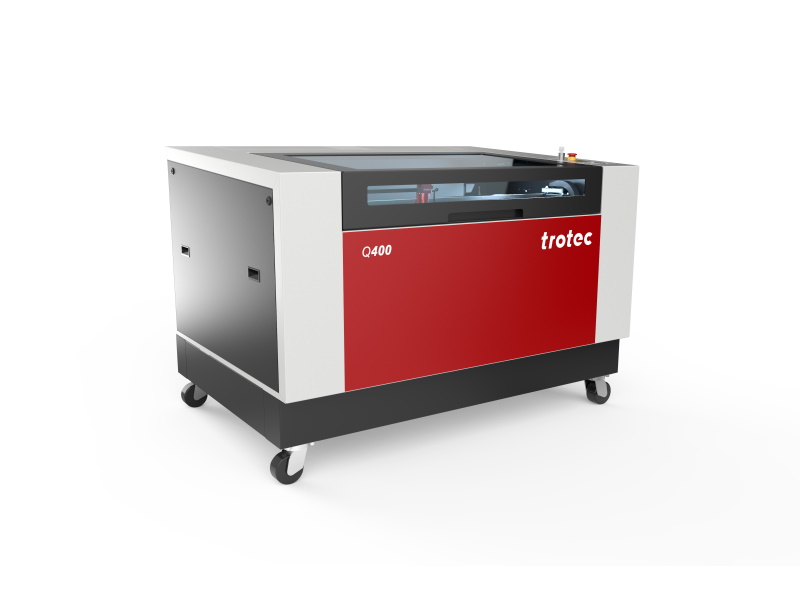

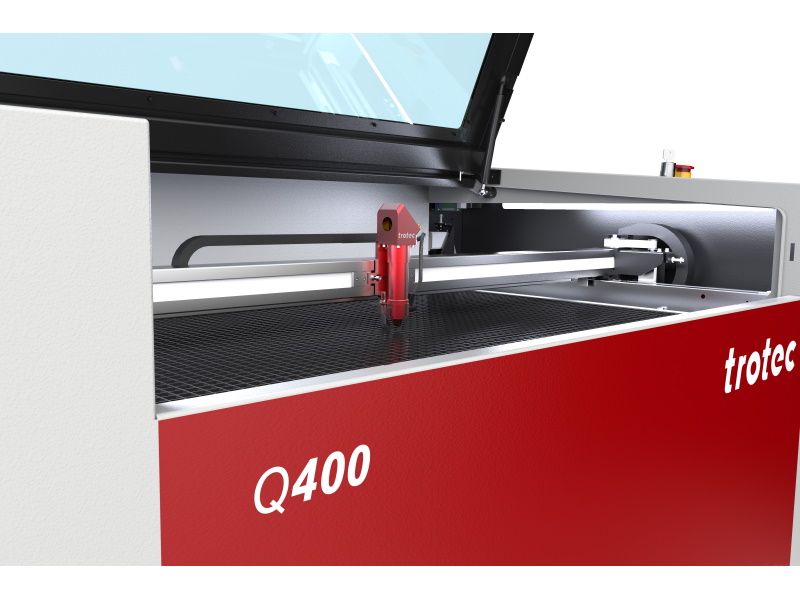

Medium-sized laser with a working surface of 1030 x 630 mm and with a CeramiCore laser tube with a power of 60W from Iradion. A cheaper variant of the Speedy 400 machine, but it contains new electronics as in the new Speedy 400. It enables precise engraving and cutting of materials such as acrylic, wood, textiles and paper.
The fastest laser cutting with OptiMotion
Maximum cutting speed with the highest quality – that’s what motion control means with OptiMotion – innovative motion planning from Trotec. Cutting speed and acceleration are automatically calculated and optimized in real time based on the geometry. Result: Saves time when creating laser files and determining parameters, high curve quality and maximum material throughput. The Q400 is up to eight times faster when cutting than comparable laser machines on the market.
Maximum productivity
The Q400 is equipped with basic Trotec technology, which has been tried and tested for decades. Q400 provides the best engraving up to 4 pt font size with sharp details at speeds of up to 2 m/s.
Efficient and intuitive work

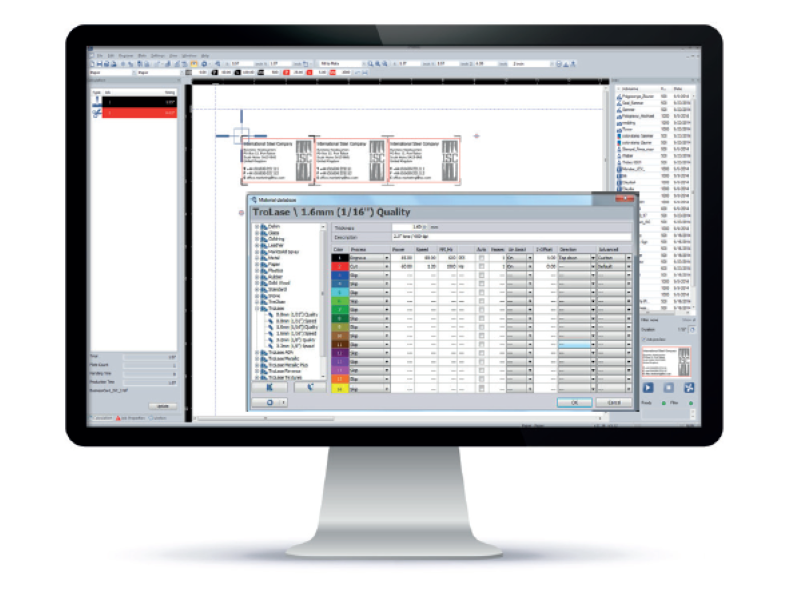

JobControl laser software has been developed to be easy to use and highly efficient. Whether you are a beginner or an experienced user, Trotec JobControl will make your daily laser work easier and support you with perfect results. Work in your usual graphics program and simply send your jobs to the laser using the printer driver. In addition to ease of use, JobControl offers a range of intelligent options. For example, job time calculator, two-way communication, tags, vector sorting, job preview, and more. The JobControl Vision camera system makes it easy to cut printed materials with perfect fit.
InPack Technology
Protects all sensitive components of a laser engraving machine, such as a lens, mirror or motor, from dust. You save time and money.
Basic set-up
Dust-free optics at all times
All optics are air-flushed. Compressed air is supplied to the corresponding lens or mirror. Dust or gases can therefore not stick to and soil the optics. Maintenance-free work and a long service life are thus guaranteed. Find more
This robust universal cutting table features extremely stable combs and a long service life. This is particularly suitable for cutting parts smaller than 100 mm as these parts remain flat after cutting. Compared to the cutting table, this black cutting grid has more support points. Find more
Sends feedback messages from the laser to the computer. This allows you to control essential functions directly from the computer. Find more
The resonator body where the laser radiation is generated is made of 100% ceramic. CeramiCore® stands for reliability, high engraving quality and longevity. Find more
Ensures higher productivity and lower running costs thanks to minimum maintenance and optimal protection against dust. Find more
Innovative laser software that offers maximum operator comfort for preparing your laser jobs. Laser engraving and laser cutting will be as easy as child's play. Find more
The laser pointer indicates exactly by a red dot where the beam of the laser machine will hit the material. Find more
OptiMotionTM - record cutting speed
Using OptiMotion™ technology, cutting speed and acceleration are calculated based on real-time geometry. This is standard for larger cutting systems, but for medium-sized lasers it is a real innovation. Perfect curve quality and up to five times faster cutting speed. Find more
Optional accessories
Improves the laser engraving on many materials while also protecting the optics of the laser engraving machine. Find more
Trotec Atmos Duo exhaust system is designed for lasers Trotec Speedy 300, Speedy 360, Speedy 400, Q400, Q500, SP500 and SP1500. Electronics allows to control the device using a laser engraving machine from software A.D. Logic. Exhaust activity is monitored by software and operator is informed on time about eg. a state of filters and automatically prompts you to change them. The two-stage cleaning … Find more
Atmos exhaust systems filter particles and odors. They set new standards in terms of comfort during handling, efficiency, and running costs. Find more
Get the perfect cutting result in a few easy steps
JobControl® Cut is a fully integrated editor for processing and optimizing basic cut geometries in the Troctec JobControl® laser software - without having to change the original geometry again in the graphics software. Get the perfect cutting result in a few easy steps.
JobControl® Cut requires only a short amount of training and is … Find more
Perfect cutting of printed materials assisted by a camera system and optical registration mark detection. Find more
Is required for laser engraving round, cylindrical and conical objects, such as glasses or bottles. Simply insert it in the engraving compartment and attach. Find more
The cutting table with aluminum slats is mainly used for cutting thicker materials (from 8mm thick) and for parts wider than 100mm. By replacing aluminum slats with acrylic, acrylic can be cut without reflection. Depending on the task, some slats can be removed individually to reduce the number of support points of the material. Find more
Sonar Technology provides a high level of accuracy when focusing on the material being laser processed, guaranteeing a higher quality. Find more
The Trotec Vent series has been designed as a simple extraction system for specific configurations of laser machines. They guarantee optimal suction performance.
The average acoustic noise level is 88 dB. If the fans are operated in workshops, it is recommended to use cabins with noise reduction. Noise reduction is approximately 12 db.
The fan can also be used to extract fumes during … Find more
