Download datasheet (PDF)Main parameters:
- pulse maintenance-free fiber laser with power of 20, 30 or 50W, 20W MOPA, 100W MOPA
- working area 70 x 70 to 310 x 310 mm
- max. marking speed: 15,500 mm/s
- průmyslový počítač s operačním systémem Windows a softwarem SpeedMark nebo SAMLight
- tiskový ovladač DirectMark

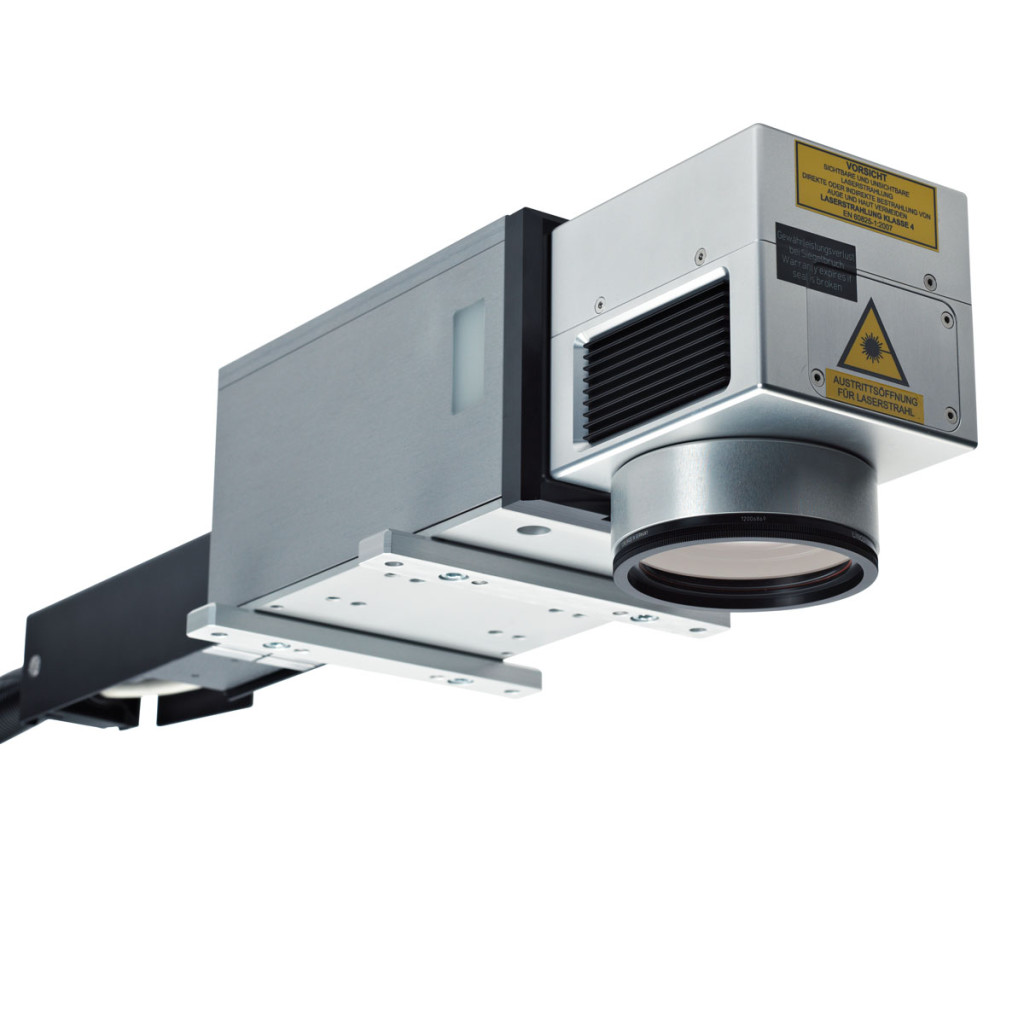

Reliable marking laser for industrial applications

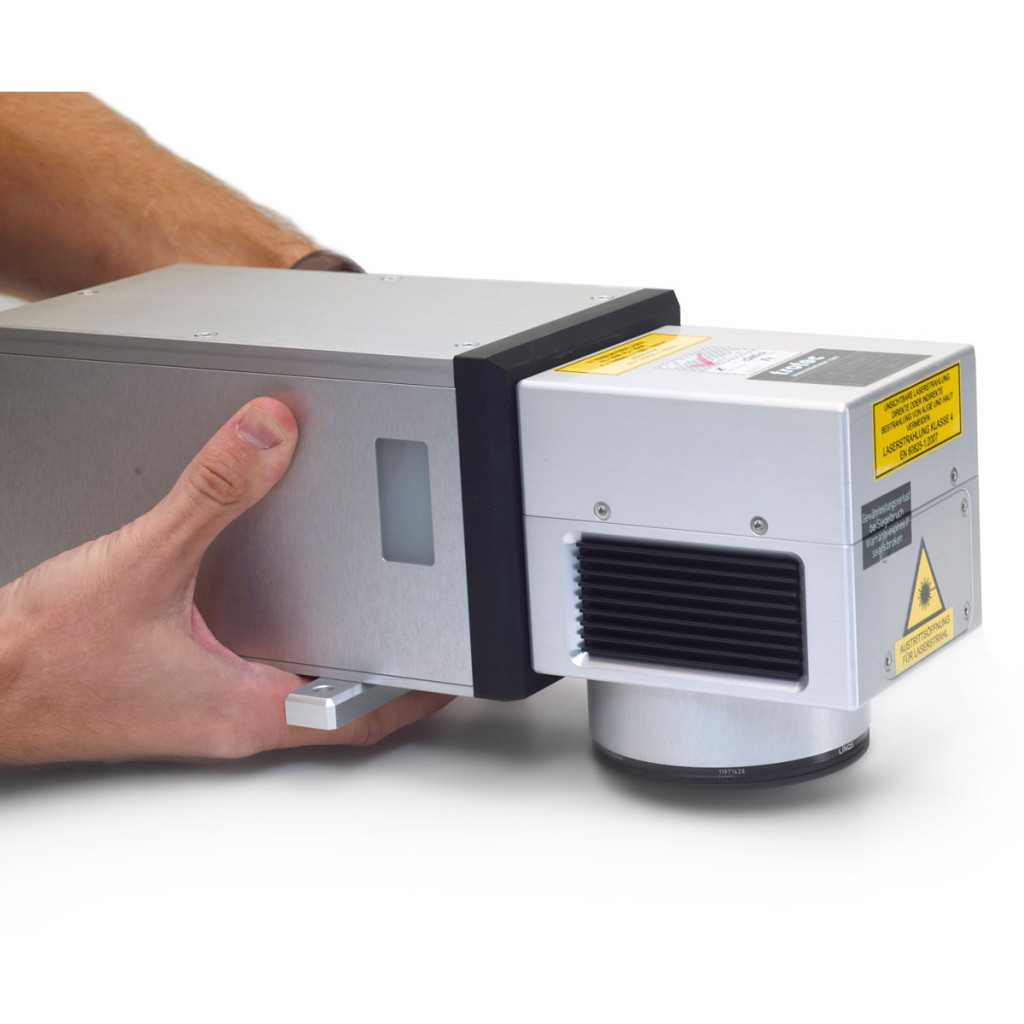

The SpeedMarker FL was specially developed for industrial marking. The robust design in IP 54 with maintenance-free laser source guarantees constantly precise marking on the workpiece. Thanks to the modular structure of the laser and the large number of possible options, you can optimally adapt the SpeedMarker FL to your existing processes.
Long service life for minimum maintenance requirement
Trotec systems are designed and tested for long-term use. The most important components are hermetically sealed and protected against dust and dirt. Air cooling and the maintenance-free laser source ensure that service expenditure is reduced to a minimum. In operation, the marking laser does not require any consumables and only a very minor amount of electricity. Maximum economic efficiency during operation is thus guaranteed.
Laser marking at maximum marking speed
The SpeedMarker FL is an industrial galvo marking laser working at outstanding marking speed. With the integrated galvo technology, you can mark electronic components and products in only a few seconds. The digitally controlled writing heads ensure pin sharp marking. Being a fiber laser, the SpeedMarker FL is especially well suited for laser marking and labeling plastics and metals.
Integration into existing systems and processes
The SpeedMarker FL marking laser is equipped with a large number of inputs and connections and is therefore ideally suited for integration into existing plants and processes. Using the SpeedMark marking software, you can reproduce all work steps, from data import and serialization through to barcode generation. The graphical user interface of the SpeedMark software can be customized to your requirements and can be configured for individual users by the User Rights Management.
Applications for the SpeedMarker FL marking laser
Here is an overview of the applications for the SpeedMarker FL laser for marking and labelling:
- Electronic component labelling (electronic enclosures, plastic parts)
- Machine parts
- Medical instruments
- Jewellery
- Data plates and industrial tags
- Weapons
- Promotional items
- Tool marking
Basic set-up
Aligning the work material is easy and quick thanks to the installed laser pointer. It accurately indicates the marking as well as edges and bores on the workpiece. This function makes material handling easier and will save you time during work preparation. Find more
Reduce processing time by up to 80%
With the integrated galvo technology, our marking lasers are among the fastest marking lasers available in the market. Compared to conventional laser plotters, you can reduce the processing time of your jobs by up to 80%.
Speed advantage thanks to galvo technology
The galvo technology is based on two very fast moving mirrors that deflect the laser beam in … Find more
Trotec galvo lasers can be optimally adapted to your work processes and materials. Choose from different laser powers (10-50 watt) and marking field sizes and customize the optimal marking solution for you.
For integration into existing systems, our marking lasers are equipped with several 24V inputs and outputs. In addition, up to four additional directly controllable axes can be … Find more
Trotec systems are designed and tested for continuous operation. The most important components are hermetically sealed and protected against dust and dirt.
Air cooling and the maintenance-free laser source reduce operating costs for Trotec galvo marking lasers to a minimum. Find more
The SpeedMarker laser also includes a perfectly matching PC to optimize the workflow. It is fast and reliable and always a state-of-the art model.
Find more
The heart of the Trotec laser marking systems is a maintenance free, air cooled high-speed fiber laser. Its high quality design guarantees longest life even under hardest conditions. Mark up to 640 characters per second; it is available with 10 to 50 watts power. Find more
A single software for all work steps
The SpeedMark laser software was specially developed for Trotec galvo marking lasers. It is especially suited for automatic marking processes and covers all work steps from data and graphic import and serialization through to the generation of barcodes. In addition, the SpeedMark user interface can be customized by macros to ensure optimal adaptation to … Find more
Optional accessories
The Atmos Nano exhaust system is the ultra compact choice for fiber laser marking applications. It has a small footprint and fits neatly beneath a workstation. Find more
The focus finder makes focusing the laser considerably easier. With a second pilot laser, you can accurately determine the correct working distance without any tools. You thus ensure precise laser marking and save time during work preparation. Find more
We offer you the following focus lenses for our galvo marking lasers.
Working fields
F-100
Standard:
F-160
F-254
F-420
70 x 70 mm
120 x 120 mm
190 x 190 mm
310 x 310 mm
Focus diameter
~ 27 µm
~ 45 µm
~ 68 µm
~ 112 µm
Find more
Marking round objects
Marking cylindrical and curved objects with the laser requires a rotary engraving unit. Using it, it is possible to mark on the rotating object to make sure that your marking is brought out in an ideal manner.
Software-controlled laser marking
The SpeedMark laser software provided by Trotec automatically adapts graphics and texts to the curved surface of the workpiece. … Find more
With the plug&play scanner, you select the marking programs directly by recording the code. Marking processes are thus even easier and safer to complete. In addition, you can use the scanner to check barcodes after the marking process. Find more
Increase the marking speed of your galvo marking laser with the optional high-performance galvos. Work at speeds of more than 500 characters per second for faster and more productive laser marking. Find more
More possibilities for marking metals and plastics
Expand your possibilities when marking metals and plastics. With the MOPA laser, you can also mark plastics higher-contrast and more legible results, mark (anodised) aluminum in black or create reproducible colours on steel. In addition, you can produce qualitatively equivalent markings with the MOPA laser often faster than with the … Find more
Laser marking on moving workpieces
"Marking on-the-Fly" stands for the marking of moving workpieces. This type of marking is mainly used for continuous manufacturing processes where any standstills of the manufacturing plants would be uneconomical.
High demands on the laser machine
Marking on-the-fly places the highest demands on precision and speed of the marking laser. On the one hand, the … Find more
With the motorized z-axis you can effortlessly adjust the working distance to the workpiece. You will thus save time, and the laser will be focused accurately. Find more
The laser safety goggles protect the eyes when working with a laser class 4 machine. Trotec offers two models, the larger version can be worn over corrective glasses.
Find more
The camera based SpeedMark Vision - Smart Adjust provides highest usability and precision for positioning of marking contents directly on the work piece.
By showing a camera image directly in the GUI (graphical user interface) of SpeedMark software, it is possible to place markings or to create new marking contents directly on the surface of the object. Find more
The compact galvo desktop workstations U300 and SpeedMarker 300 can be equipped either with a mechanical Z-axis or a software-controlled Z-axis, which also can be controlled by a keypad on the machine. The optimum setup for your application.
