Main parameters:
- pulse maintenance-free fiber laser with a power of 20, 30 or 50W. 20W MOPA, 100W MOPA
- working area 70 x 70 to 310 x 310 mm
- max. fiber marking speed: 15,500 mm/s
- Iradion CO2 laser with a power of 30, 45, 60 or 100W
- working surface 65 x 65 to 535 x 535 mm
- max. marking speed for CO2: 7,700 mm/s
Next parameters
- external dimensions: 449 x 559 x 177 mm
- industrial computer with Windows operating system and SpeedMark software
- DirectMark printer driver
Download datasheet (PDF)Our experts
are ready to help
Martin Souček
- Martin Souček
- Specialista na průmyslové lasery a značení
- Telefon: +420 / 284 829 696
- GSM: +420 / 602 635 512
- E-mail: martin.soucek@megaflex.cz
Mgr. Jiří Dušek
- Mgr. Jiří Dušek
- Šéf laserového oddělení firmy
- Telefon: +420 / 284 829 696
- GSM: +420 / 724 102 490
- E-mail: jiri.dusek@megaflex.cz
Ultimate flexibility
Industrial users often face the challenge of marking a broad range of differently sized and bulky parts. Since the SpeedMarker 50 is designed without housing and as open laserclass 4 system, the machine is ideal for marking such items. The intiuitive software package SpeedMark assists the operator and is able to process variable data. It also can communicate with external systems (e.g. databases) and guarantees a flawless work process.
Many applications, one tool
The built-in high-speed fiber laser is perfect for markings on metals and many plastics. Depending on the chosen marking process and material, it is even possible to mark parts without a tangible depression on the surface (e.g. annealing of stainless steel for medical instruments). A focus finder and an electrical Z-axis makes precise focussing easy and reduce the number of rejects.
The SpeedMarker 50 is also available with a CO2 laser, which is especially suitable for organic materials such as paper, glass, stone and many more.
Typical applications include:
- Direct marking of machine parts or medical instruments and implants
- Data plates and industrial tags
- Laser marking of plastic parts in the automotive industry
- Legally required information
One software package for every requirement
The specifically for the SpeedMarker Series developed software SpeedMark offers automated marking processes and provides program modules for typical marking tasks (for example producing serial numbers or codes). Without any special programming knowledge any user can adjust these modules and create your individual marking programs using a graphical workflow chart. Choose between simple direct command or fully automated marking – the software will support you optimally in your daily marking processes.
Basic set-up
The focus finder makes focusing the laser considerably easier. With a second pilot laser, you can accurately determine the correct working distance without any tools. You thus ensure precise laser marking and save time during work preparation. Find more

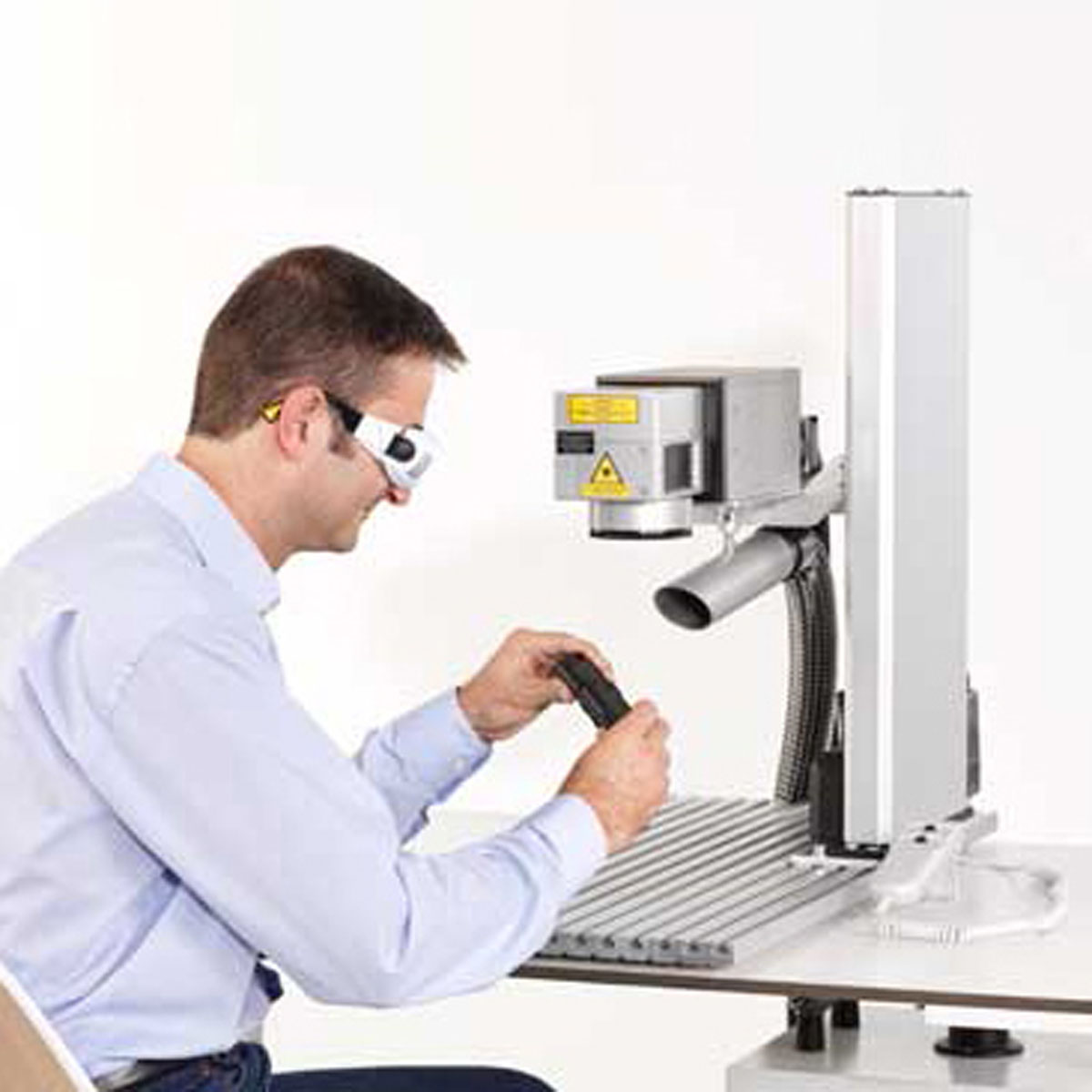

Aligning the work material is easy and quick thanks to the installed laser pointer. It accurately indicates the marking as well as edges and bores on the workpiece. This function makes material handling easier and will save you time during work preparation. Find more
Reduce processing time by up to 80%
With the integrated galvo technology, our marking lasers are among the fastest marking lasers available in the market. Compared to conventional laser plotters, you can reduce the processing time of your jobs by up to 80%.
Speed advantage thanks to galvo technology
The galvo technology is based on two very fast moving mirrors that deflect the laser beam in … Find more
With the motorized z-axis you can effortlessly adjust the working distance to the workpiece. You will thus save time, and the laser will be focused accurately. Find more

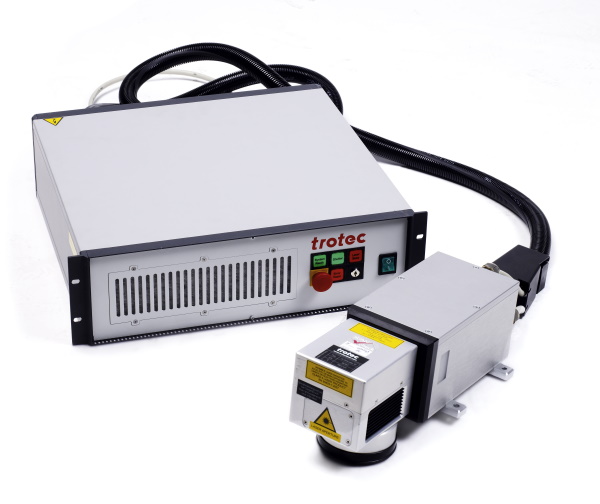

The SpeedMarker laser also includes a perfectly matching PC to optimize the workflow. It is fast and reliable and always a state-of-the art model.
Find more

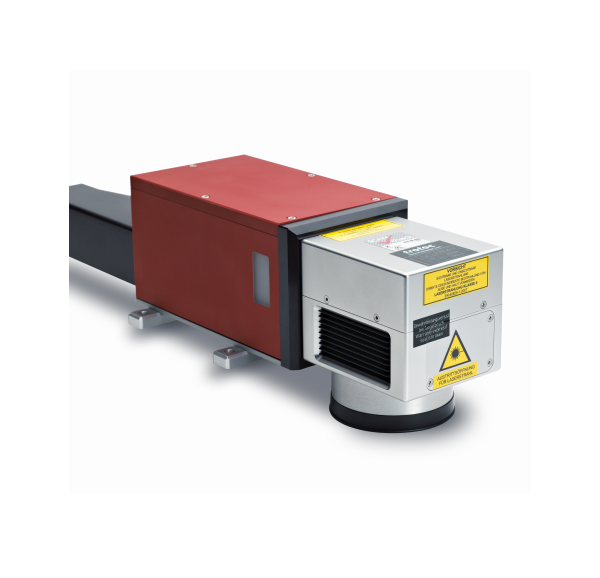

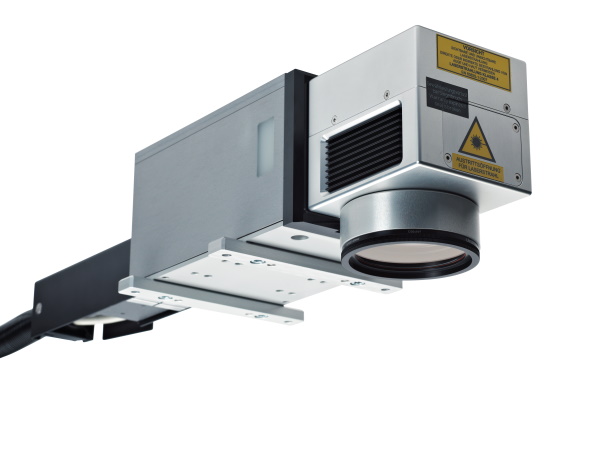

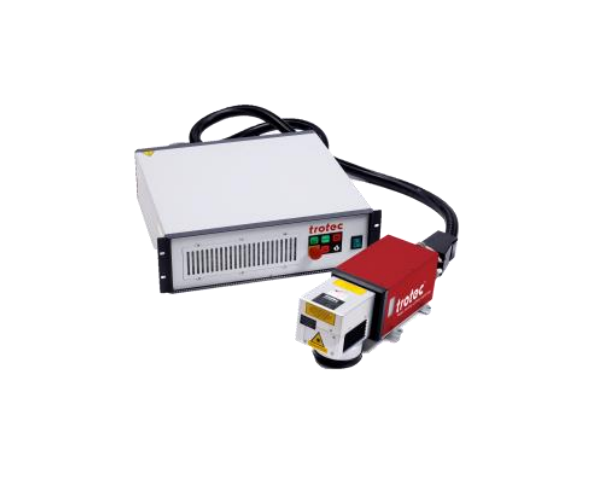

The heart of the Trotec laser marking systems is a maintenance free, air cooled high-speed fiber laser. Its high quality design guarantees longest life even under hardest conditions. Mark up to 640 characters per second; it is available with 10 to 50 watts power. Find more
The laser safety goggles protect the eyes when working with a laser class 4 machine. Trotec offers two models, the larger version can be worn over corrective glasses.
Find more
A single software for all work steps
The SpeedMark laser software was specially developed for Trotec galvo marking lasers. It is especially suited for automatic marking processes and covers all work steps from data and graphic import and serialization through to the generation of barcodes. In addition, the SpeedMark user interface can be customized by macros to ensure optimal adaptation to … Find more
Optional accessories
The Atmos Nano exhaust system is the ultra compact choice for fiber laser marking applications. It has a small footprint and fits neatly beneath a workstation. Find more
We offer you the following focus lenses for our galvo marking lasers.
Working fields
F-100
Standard:
F-160
F-254
F-420
70 x 70 mm
120 x 120 mm
190 x 190 mm
310 x 310 mm
Focus diameter
~ 27 µm
~ 45 µm
~ 68 µm
~ 112 µm
Find more
Marking round objects

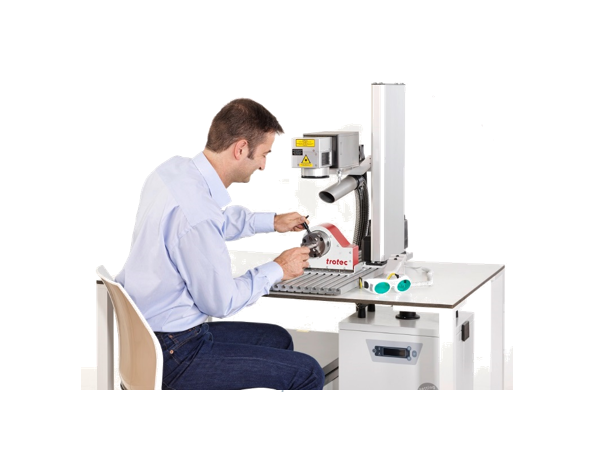

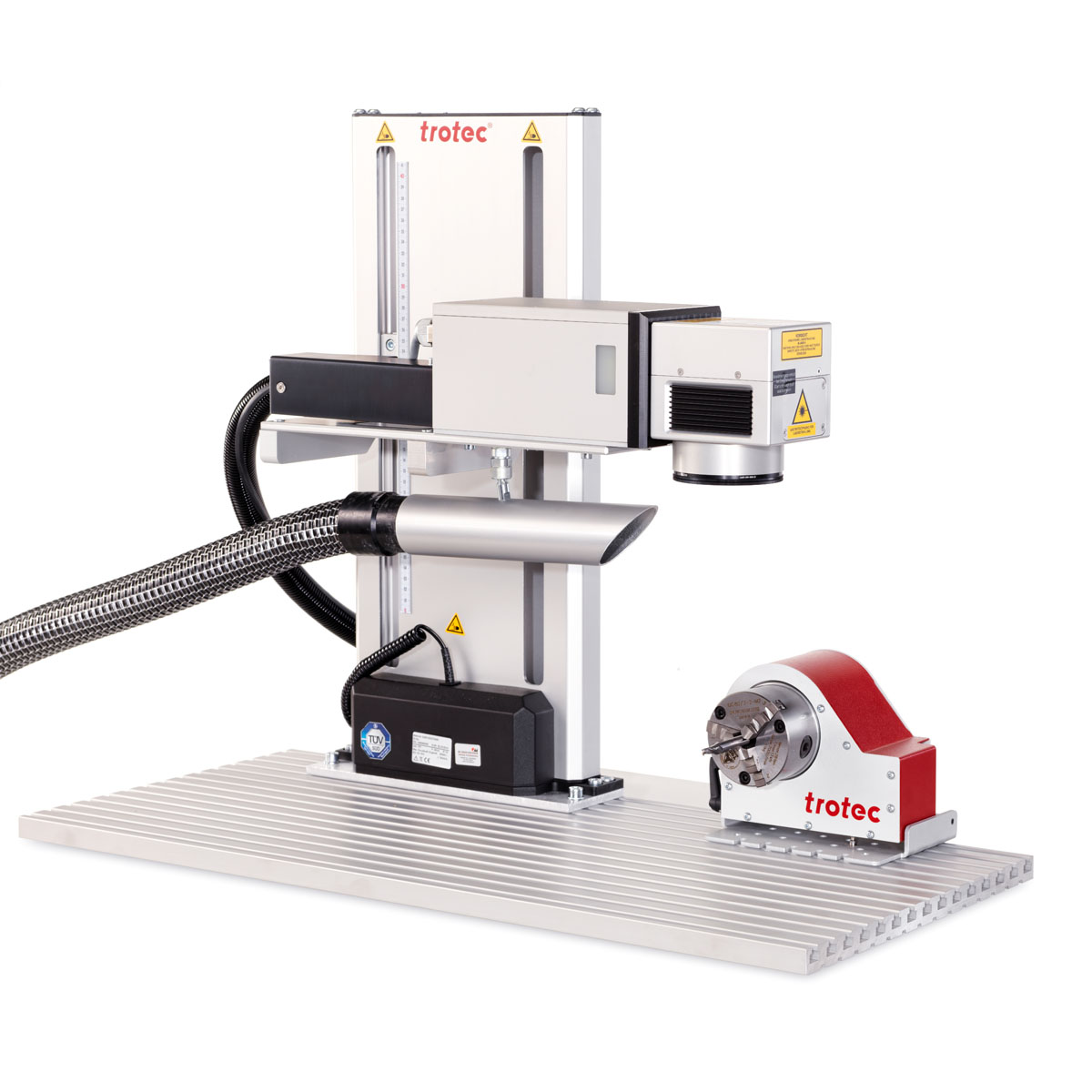

Marking cylindrical and curved objects with the laser requires a rotary engraving unit. Using it, it is possible to mark on the rotating object to make sure that your marking is brought out in an ideal manner.
Software-controlled laser marking
The SpeedMark laser software provided by Trotec automatically adapts graphics and texts to the curved surface of the workpiece. … Find more
Nožní spínač umožňuje provoz stroje jednoduchým stiskem nohou obsluhy.
Increase the marking speed of your galvo marking laser with the optional high-performance galvos. Work at speeds of more than 500 characters per second for faster and more productive laser marking. Find more
More possibilities for marking metals and plastics
Expand your possibilities when marking metals and plastics. With the MOPA laser, you can also mark plastics higher-contrast and more legible results, mark (anodised) aluminum in black or create reproducible colours on steel. In addition, you can produce qualitatively equivalent markings with the MOPA laser often faster than with the … Find more
