Download datasheet (PDF)Main parameters:
- Class 2 CO2 laser with a power of 100 - 400W
- max. engraving area: 1500 x 1250 mm
- max. size of inserted material 1700 x 1600 mm
- max. engraving speed: 165 cm/s
- max. object height: 40/53/75 mm (3 different work table positions), without work table 185 mm
Next parameters
- brushless maintenance-free servomotors
- external dimensions: 2829 x 2197 x 1293 mm
- weight 1200 - 1300 kg
- max. load capacity table: 25 kg
- control: PC with Win 10 32 and 64 bit
- TroCAM - CAD / CAM program for professional work
- gas unit - choice of two assistance gases
- connection for external compressor for intensive blowing of the cut
- air blown optics
- suction directly at the laser head

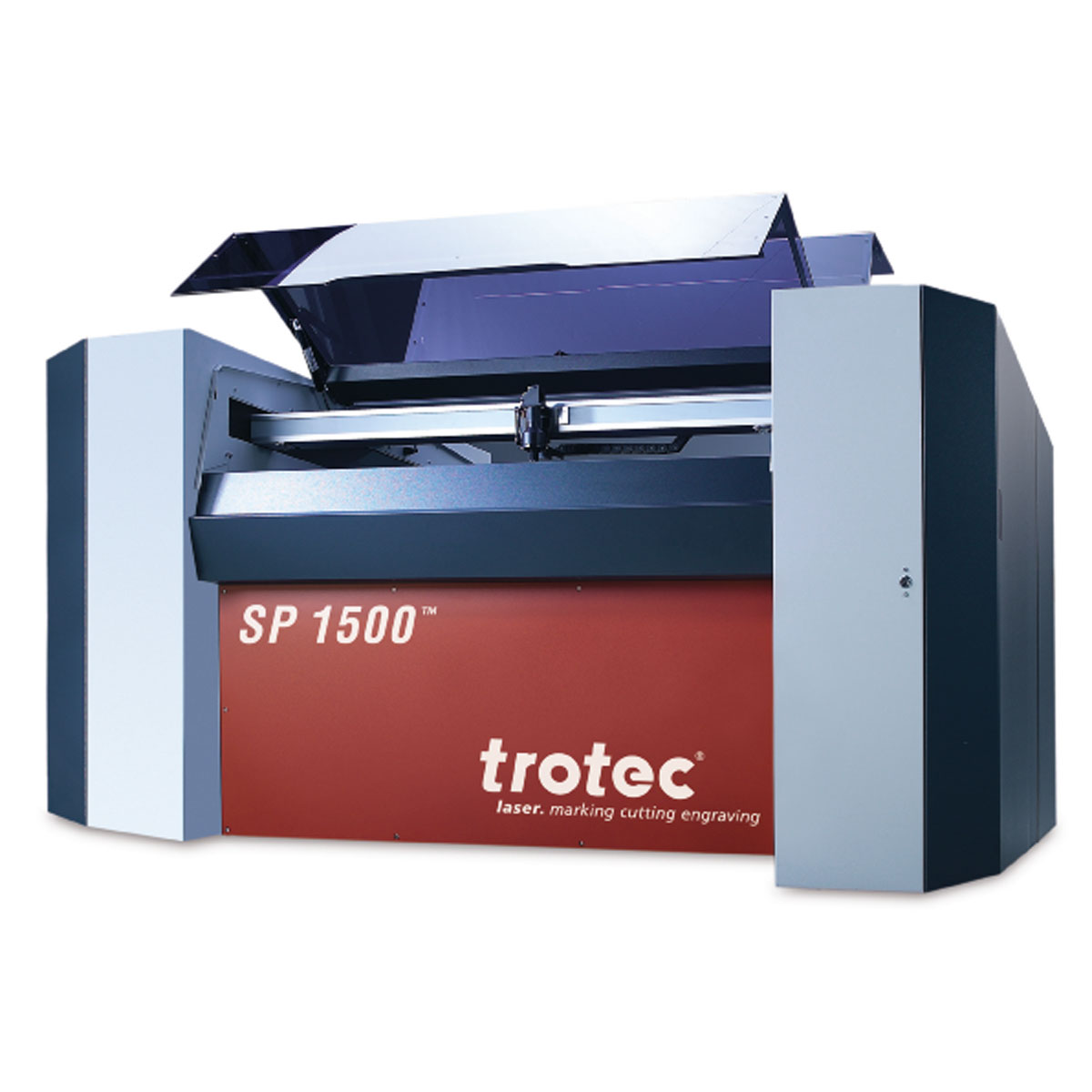

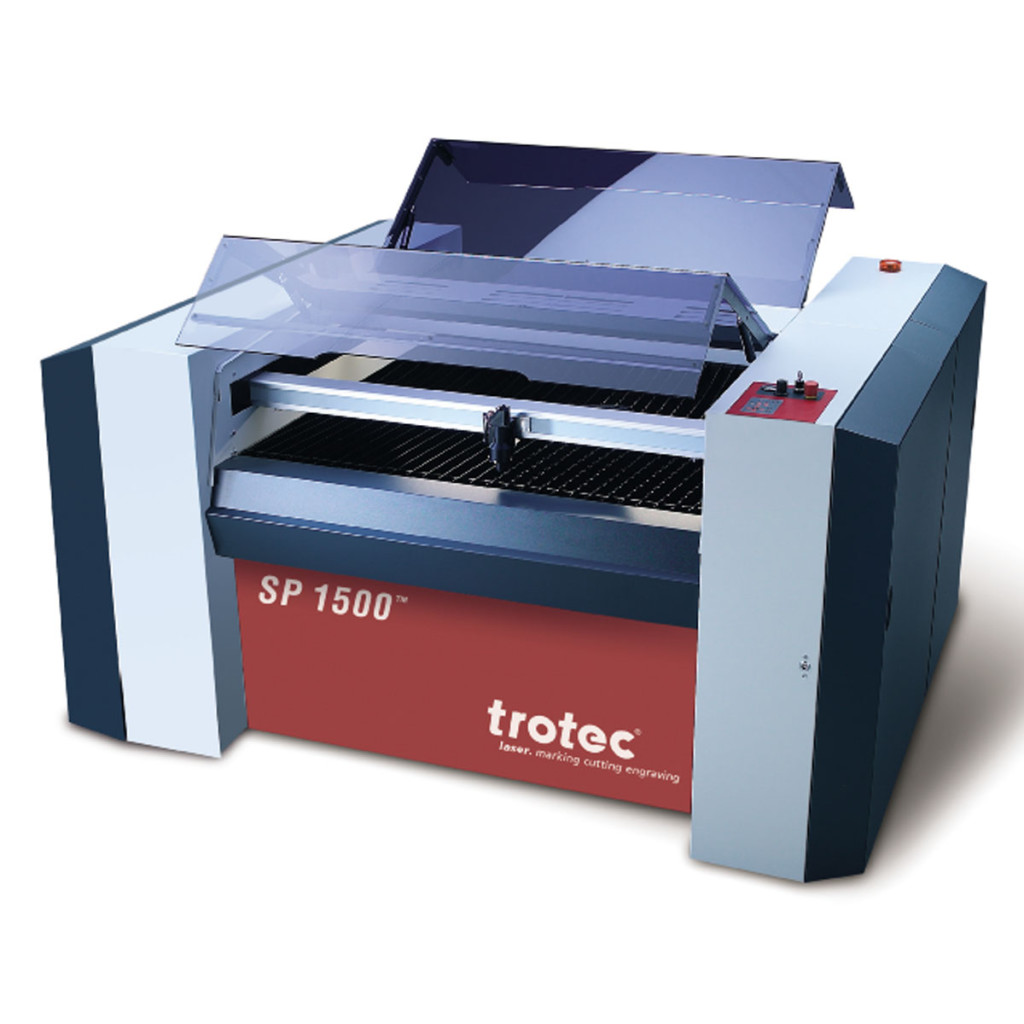

The laser for demanding cutting applications
The SP1500 laser machine offers maximum productivity for minimum operating costs. With a work area of 1500 x 1250 mm and a laser power of up to 400 watt, the laser cutting and laser engraving machine is your ideal partner for demanding cutting applications.
For profitable material processing
Whether you process plastics or wood or finish process prints, whether you work with large plates or sheet material – handling these materials requires a laser machine that fulfils these demands. The SP1500 stands for top quality and minimum maintenance requirement. The 900 kg flatbed laser offers a robust, stable work surface for laser engraving and laser cutting.
Use:

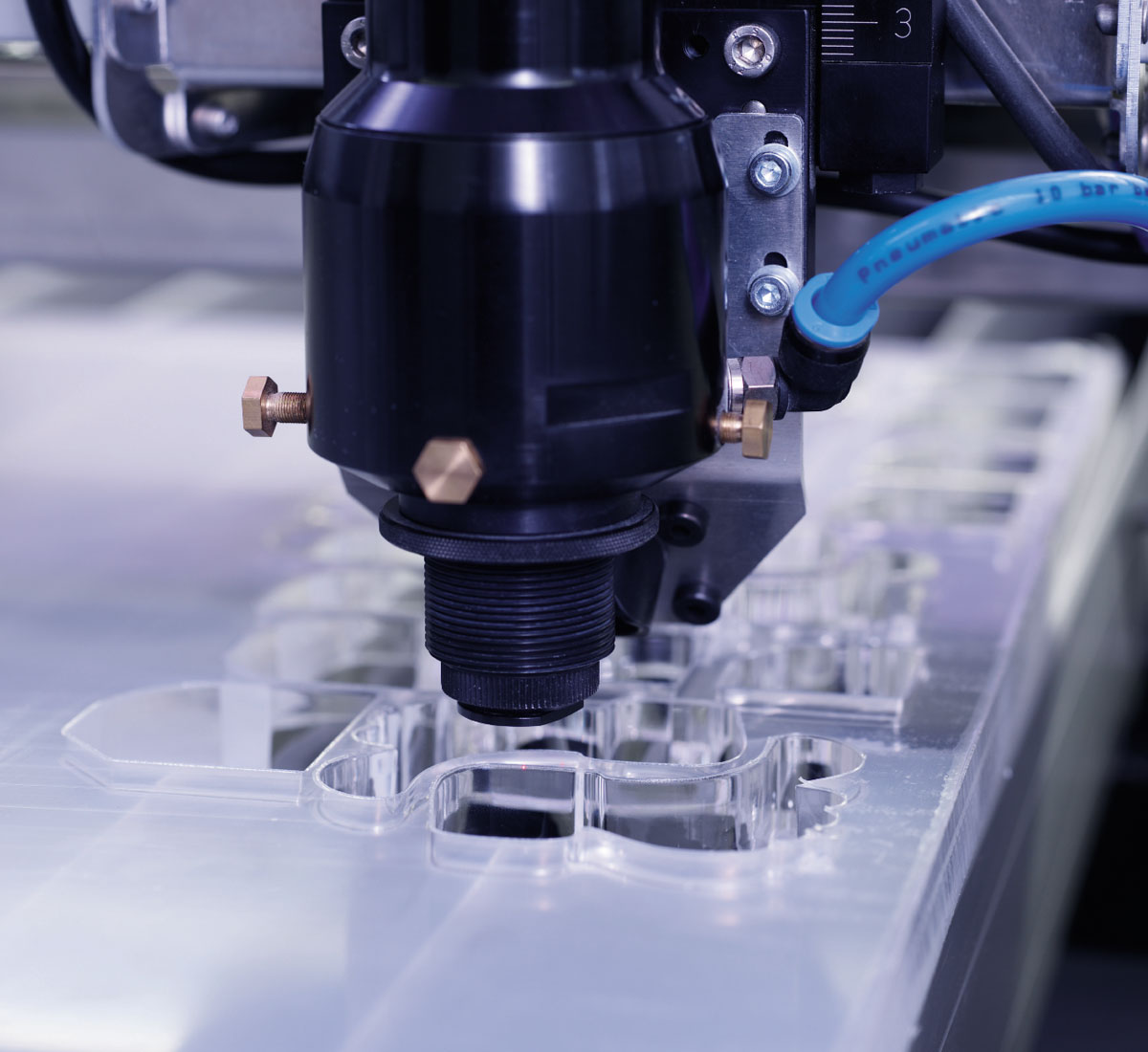

sign-making: acrylates – glossy edges in the cut, combination of cut and engraving
cutting tools: wood – complete precision, no cutting, drilling ..
clothing: textile – flexible “cut” of samples, fast production
electrical engineering: plastics – no milling, cutting, punching ..
other materials: wood, rubber, anodized aluminum, cork, paper, leather
Basic set-up
Improves the laser engraving on many materials while also protecting the optics of the laser engraving machine. Find more
Dust-free optics at all times
All optics are air-flushed. Compressed air is supplied to the corresponding lens or mirror. Dust or gases can therefore not stick to and soil the optics. Maintenance-free work and a long service life are thus guaranteed. Find more
Atmos exhaust systems filter particles and odors. They set new standards in terms of comfort during handling, efficiency, and running costs. Find more
Sends feedback messages from the laser to the computer. This allows you to control essential functions directly from the computer. Find more
The resonator body where the laser radiation is generated is made of 100% ceramic. CeramiCore® stands for reliability, high engraving quality and longevity. Find more
The cutting tables from Trotec reduce beam reflection and the disadvantages associated with it during laser cutting to a minimum. Find more

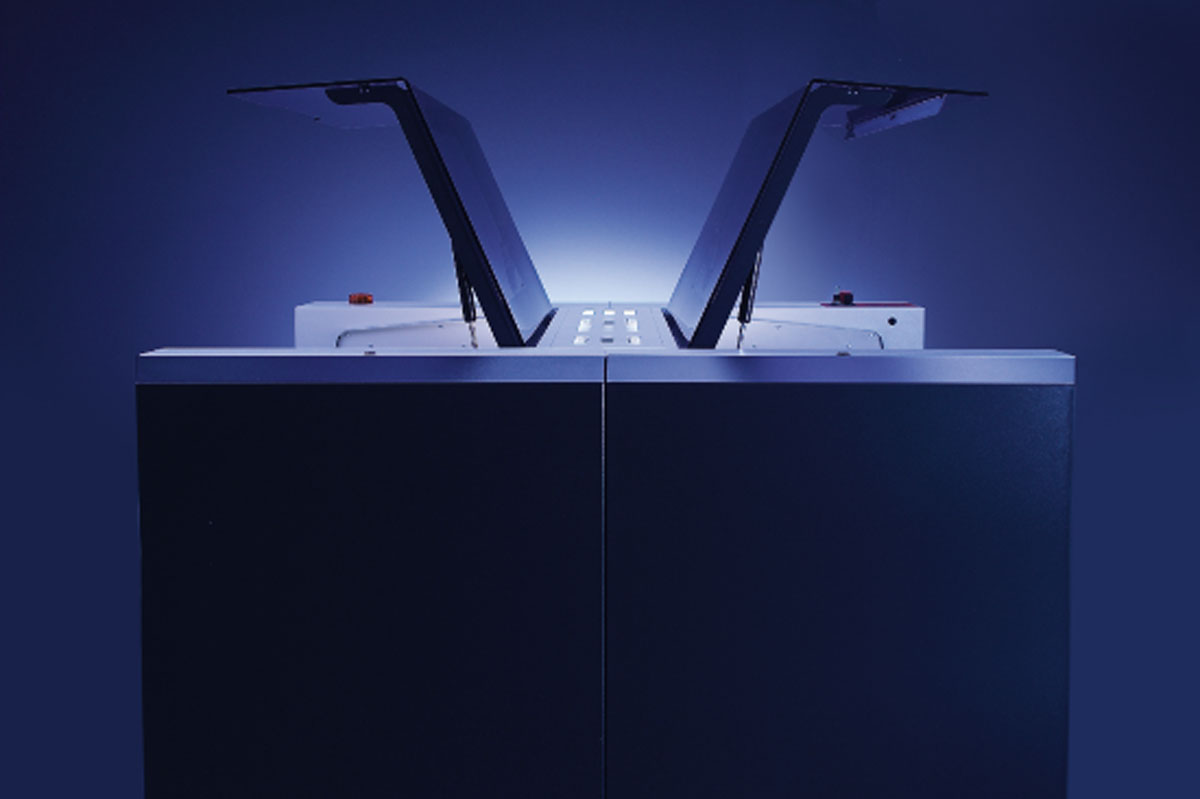

Safe laser machine enclosure
Thanks to the unique design of the enclosure, the SP1500 machine fulfills laser safety class 2. You won't require any special structures to protect you staff or a laser safety officer. In addition, you will benefit from a more efficient extraction of the dust provided by this closed system. Find more
Controls essential functions of the exhaust system from the computer.
Provides optimum protection against dust penetration as it seals the engraving compartment. Find more
Ensures higher productivity and lower running costs thanks to minimum maintenance and optimal protection against dust. Find more
Intelligent cutting with Trotec IPC
With the novel laser control module, speed and acceleration are dynamically adapted depending on the cutting path. The process time and the quality of the cutting results are significantly improved. Find more
Innovative laser software that offers maximum operator comfort for preparing your laser jobs. Laser engraving and laser cutting will be as easy as child's play. Find more
The laser pointer indicates exactly by a red dot where the beam of the laser machine will hit the material. Find more
Trotec Laser Remote features control of Trotec flatbed lasers and real time feedback. This app is designed get information about the laser status, pause and position laser jobs, or move the laser head. Find more
Find the right lens for achieving optimal results during laser engraving or laser cutting with Trotec laser machines. Find more
TroCAM is the fully equipped, integrated CAD/CAM software solution that ensures precise control of your Trotec laser machine. Find more
Vodní chladič zabraňuje kolísání výkonu laseru ve složitých klimatických podmínkách. Optional accessories

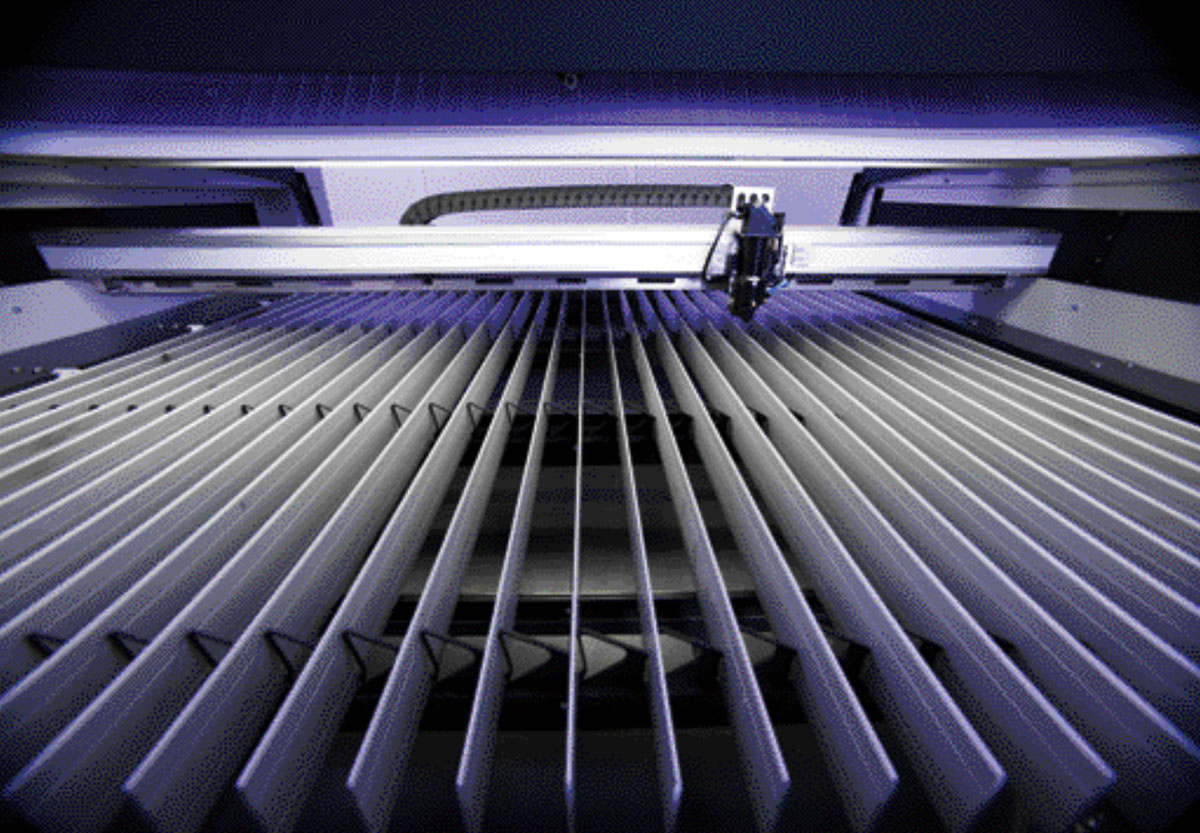

Universal cutting table for thin plexiglass cutting up to 8 mm thickness without reflection. As with the black aluminum cutting lamellas, parts of less than 100 mm remain flat when cut and do not fall through the grid. Find more
This robust universal cutting table features extremely stable combs and a long service life. This is particularly suitable for cutting parts smaller than 100 mm as these parts remain flat after cutting. Compared to the cutting table, this black cutting grid has more support points. Find more
Trotec Atmos Duo exhaust system is designed for lasers Trotec Speedy 300, Speedy 360, Speedy 400, Q400, Q500, SP500 and SP1500. Electronics allows to control the device using a laser engraving machine from software A.D. Logic. Exhaust activity is monitored by software and operator is informed on time about eg. a state of filters and automatically prompts you to change them. The two-stage cleaning … Find more
Atmos exhaust systems filter particles and odors. They set new standards in terms of comfort during handling, efficiency, and running costs. Find more
For perfect cutting results: Gas-Kit
Using the Gas-Kit, up to 2 process gases can optionally be connected (e. g. compressed air, N2). It prevents flames, improves dust transport, and additionally protects the lens. For certain materials, such as for example textiles, wood or paper, the use of process gases is essential. In these applications, compressed air will significantly improve the … Find more
Při dělení materiálů lze volitelně použít řezací stůl Honeycomb. Použitím řezacího stolu se omezují zpětné odrazy od pracovního stolu, které mohou způsobit poškození spodní části řezaného materiálu. Find more
Get the perfect cutting result in a few easy steps
JobControl® Cut is a fully integrated editor for processing and optimizing basic cut geometries in the Troctec JobControl® laser software - without having to change the original geometry again in the graphics software. Get the perfect cutting result in a few easy steps.
JobControl® Cut requires only a short amount of training and is … Find more
Perfect cutting of printed materials assisted by a camera system and optical registration mark detection. Find more

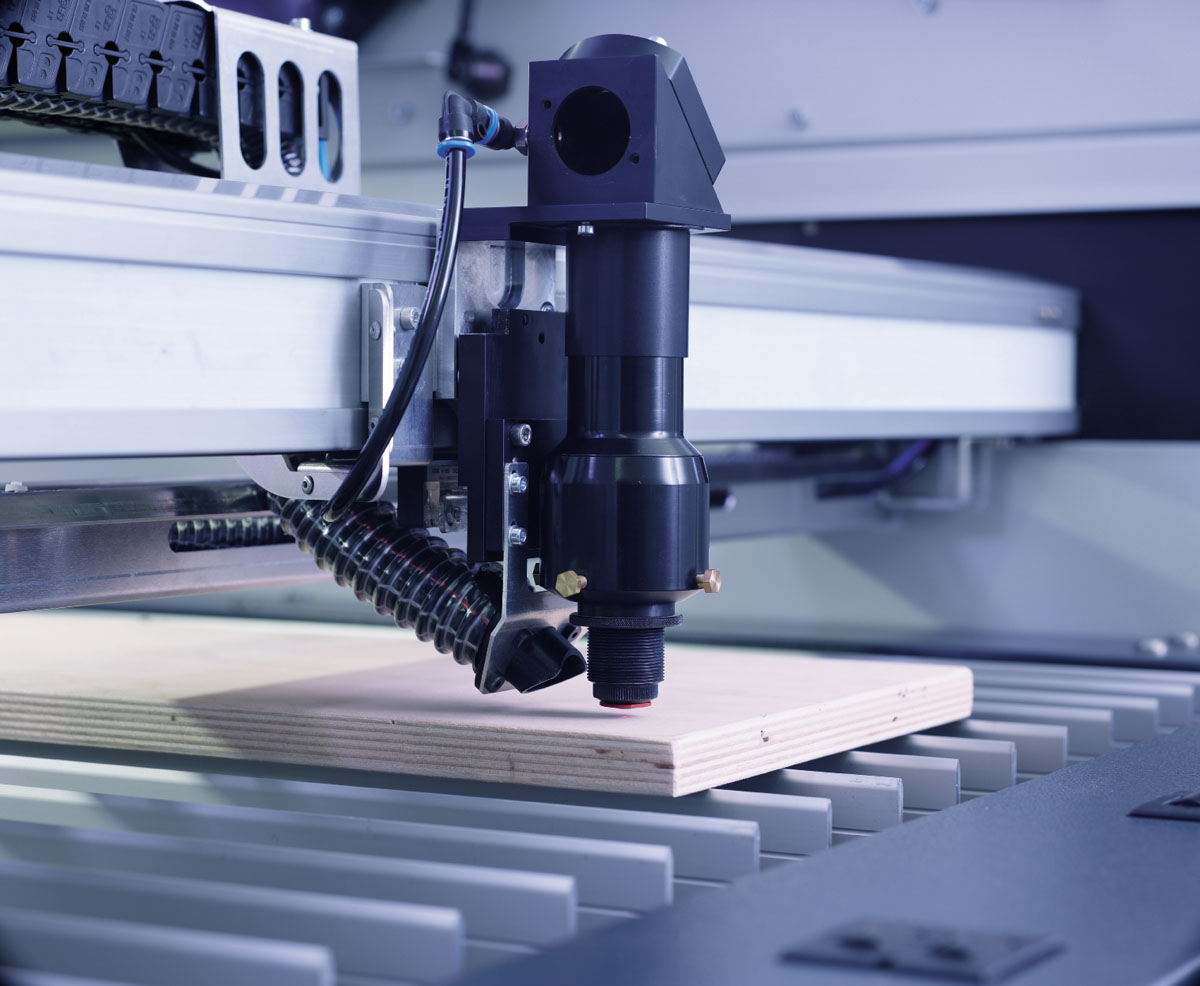

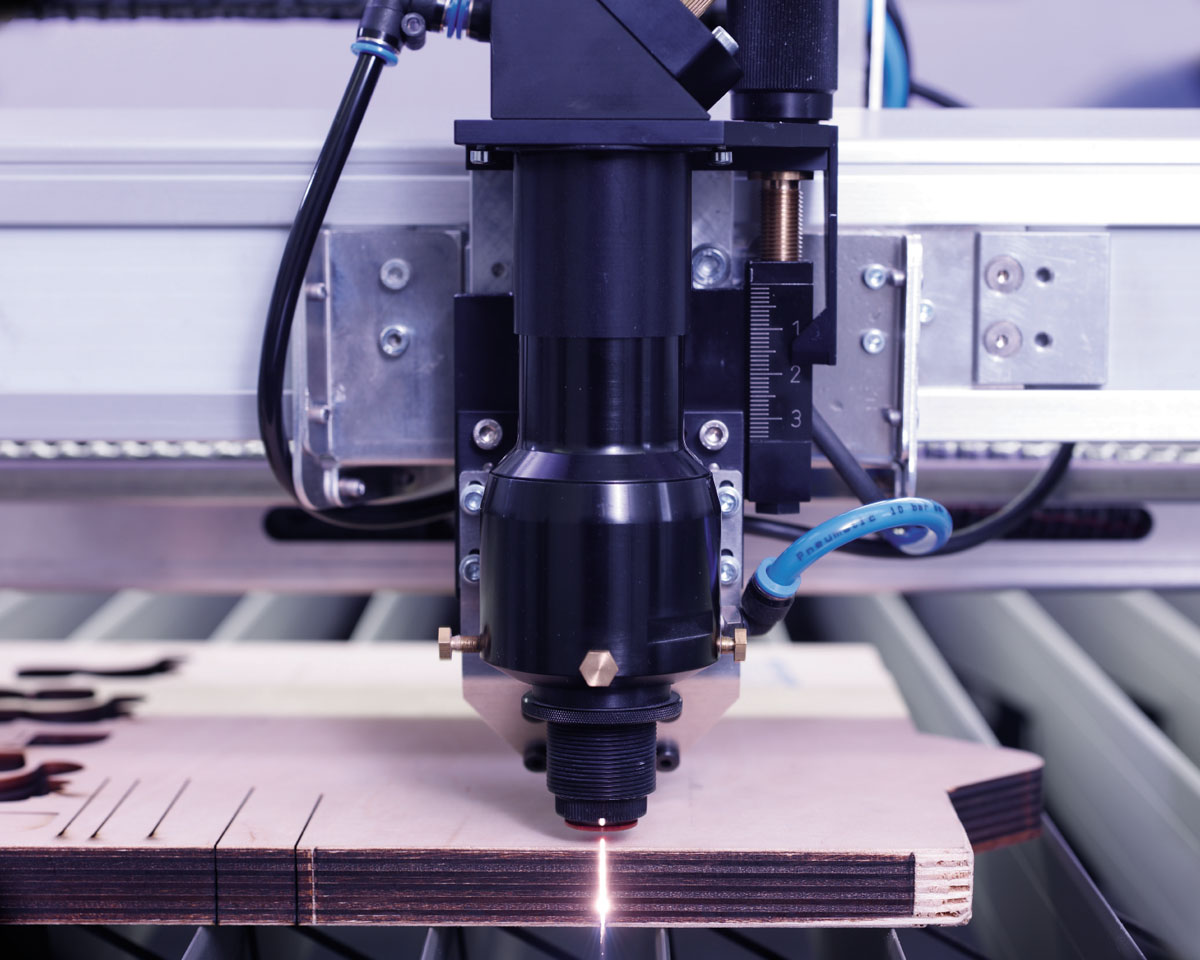

Efficient extraction
An exhaust that is directly attached to the laser head removes dust and gases generated during the laser process. The travelling exhaust is indispensible for engraving applications. Dust is efficiently extracted where it is produced. This will improve the engraving result significantly when working with wood, laminates, or even acrylic. But also during cutting, the … Find more
The vacuum table holds the material in place on the work table and reduces the handling effort during fastening of the material. Find more
The Trotec Vent series has been designed as a simple extraction system for specific configurations of laser machines. They guarantee optimal suction performance.
The average acoustic noise level is 88 dB. If the fans are operated in workshops, it is recommended to use cabins with noise reduction. Noise reduction is approximately 12 db.
The fan can also be used to extract fumes during … Find more
